  • High Cycle—Up to 300 CPM
  • Long Life—5 to 10 Times Longer
  • Heavy Duty Totally Enclosed Housing
  • Available in three different types with varying power & torque capability
Order Product
Technical Enquiry

Product Description

The Force Control Posidyne clutch brake consist of a clutch stack and brake stack made up of alternating friction discs and drive plates connected to a splined output shaft. The drive plates are connected to the input shaft or housing.

A centrally located air (or hydraulic) actuated piston exerts pressure on either the clutch stack or brake stack – never both.

Adjustable actuation pressure on the friction stack establishes the torque transmitted by that stack, and is independently adjustable.

There are three types of Clutch brake available:

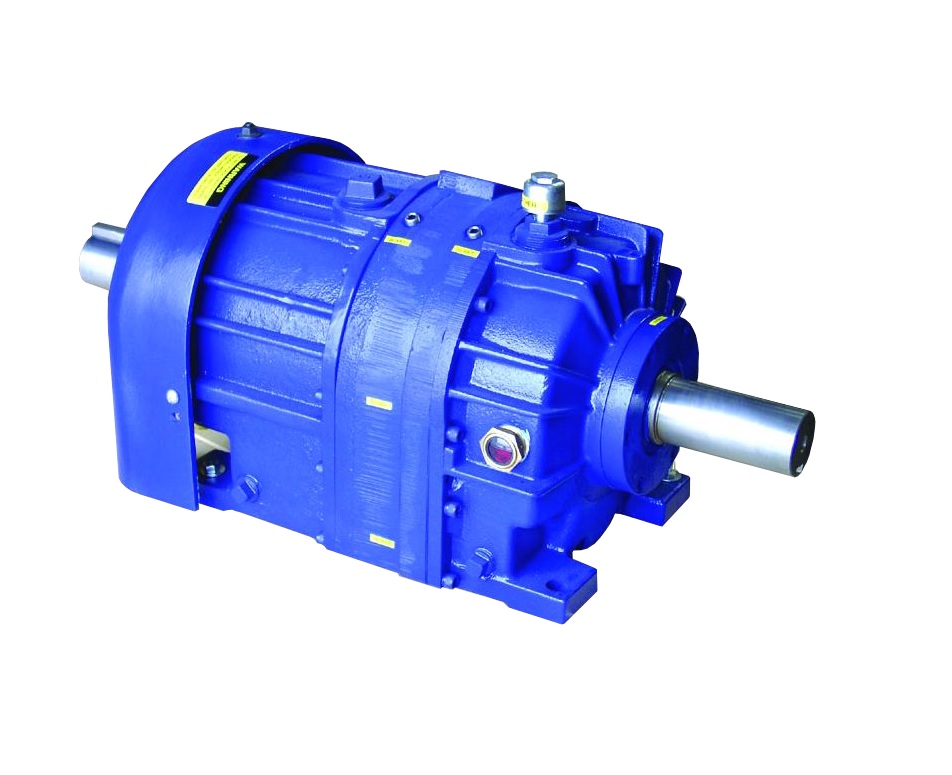

Posidyne Clutch Brakes for Heavy Duty, High Cycle Applications

  • Torque: 518 LB-IN to 79,000 LB-IN
  • HP: 1 HP to 1500 HP.
  • Pneumatic or Hydraulic Actuation
  • Cooling: Basic, Fan, Water and Forced Lube
  • Optional C-Face or Piggyback Available
  • Washdown, Marine Duty or Hazardous Duty

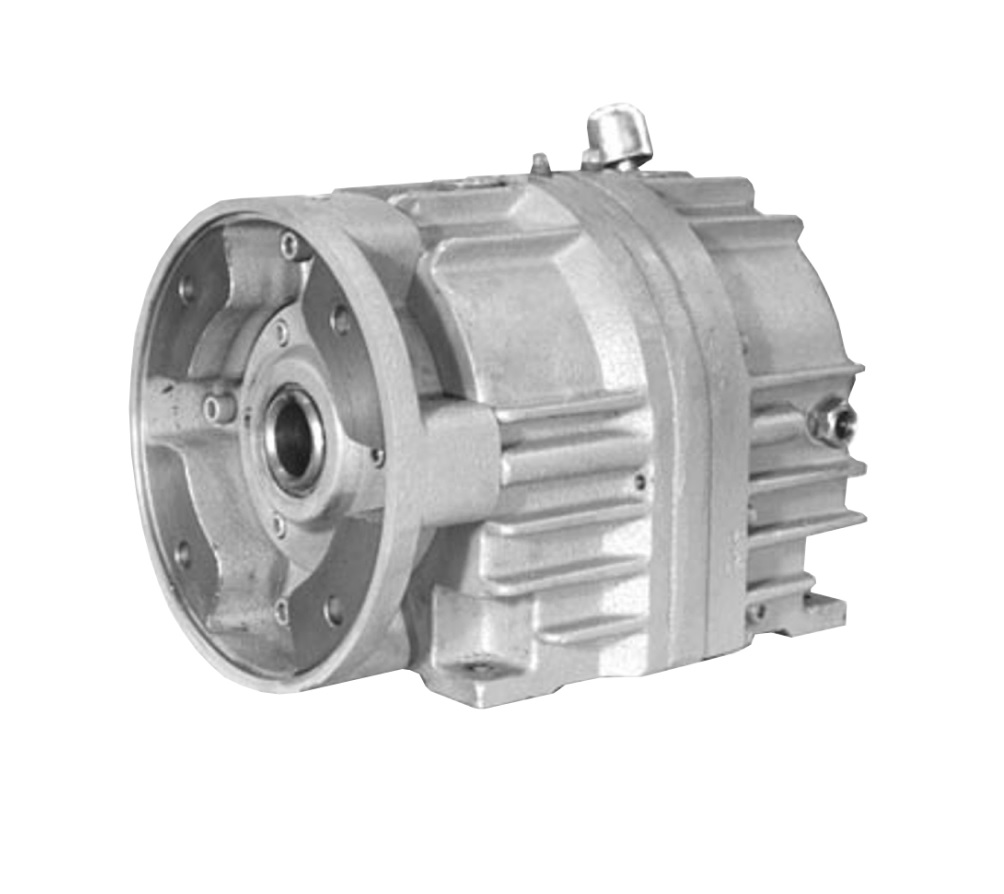

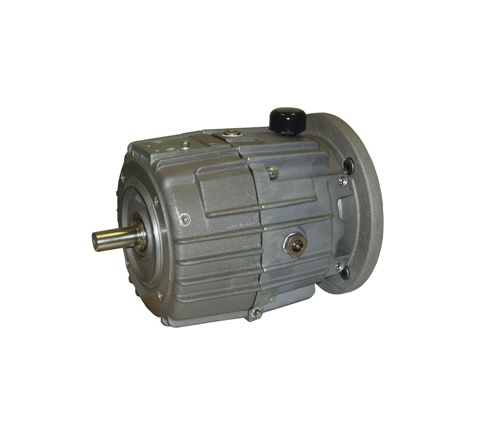

 Posidyne Size 1.5 Clutch Brake with Lightweight Housing

  • Torque: 32 LB-IN to 500 LB-IN
  • Pneumatic or Hydraulic Actuation
  • Cooling: Basic, Fan and Forced Lube
  • C-Face Fits NEMA 56C to 184T Frame Motors
  • Optional Foot Mounting Available
  • Washdown, Marine Duty or Hazardous Duty

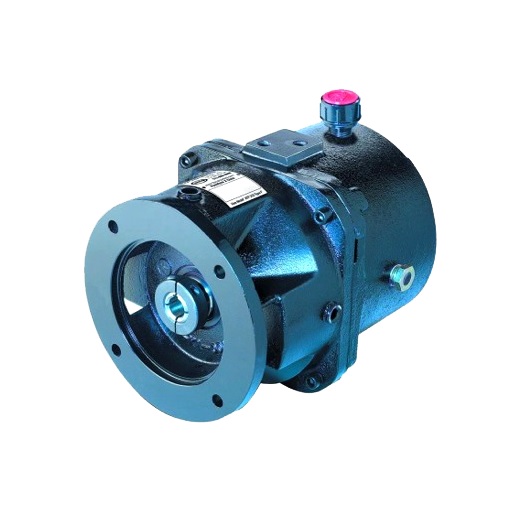

Posidyne X-Class C-Face Clutch Brakes Value Engineered for OEM Applications

  • Torque: 90 LB-IN to 1,000 LB-IN
  • HP: 1 HP to 25 HP
  • Pneumatic or Hydraulic Actuation.
  • Fits NEMA 56C to 215T Frames Motors
  • Optional Input Shaft and Foot Mounting Available
  • Washdown, Marine Duty or Hazardous Duty
