Testing And Commissioning for Engineering Projects

In the world of engineering projects, testing and commissioning play a crucial role in ensuring the successful delivery of complex systems. These processes are often misunderstood or overlooked, leading to costly delays, safety hazards, and compromised quality.

This article aims to demystify testing and commissioning by providing a comprehensive step-by-step guide to their implementation. It will explore the importance of testing and commissioning in engineering projects, delve into the multi-step process involved, discuss their role in safety and quality assurance, and conclude with key takeaways for project managers and decision-makers.

The Importance of Testing and Commissioning in Engineering Projects

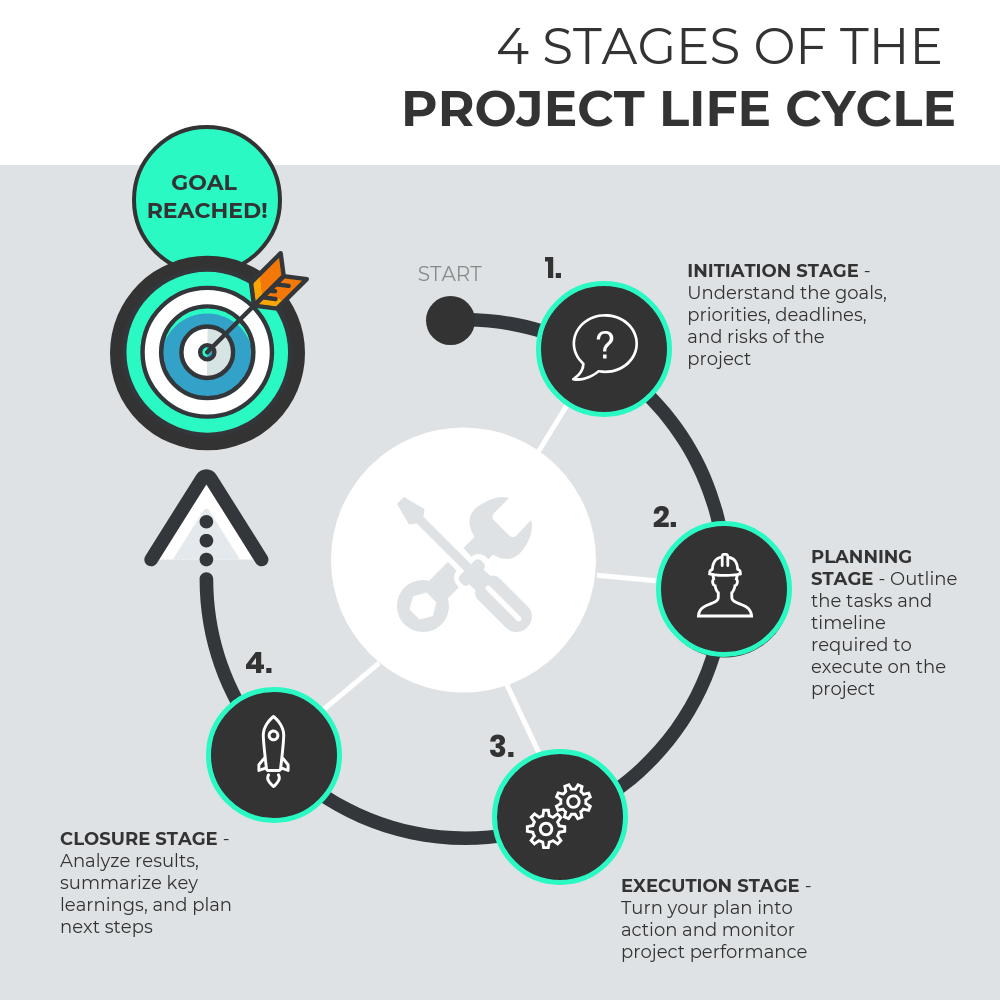

(Source: Venngage)

Testing and commissioning are integral parts of the engineering project lifecycle. They serve as a quality control measure to validate the functionality, reliability, and safety of complex systems before they are put into operation. The absence of thorough testing and commissioning can lead to severe consequences, such as equipment failure, accidents, financial losses, and damage to a company's reputation.

Furthermore, testing and commissioning provide an opportunity to identify and rectify any design or installation issues early in the project. By conducting comprehensive testing, engineers can ensure that the systems meet regulatory requirements, industry standards, and client expectations. This process also allows for adjustments and improvements before operational deployment, minimising risks and ensuring the long-term success of the project.

Multi-Step Process of Testing and Commissioning

Planning and Design

Testing and commissioning should be planned and incorporated into the project from the early stages of design. During the planning phase, project objectives are defined, critical systems are identified, and performance requirements are established.

Engineers and project managers should collaborate closely during this phase to ensure that adequate resources and timelines are allocated for testing and commissioning activities.

Effective planning involves considering various factors such as the complexity of the systems, the availability of testing equipment, and the qualifications of the testing team.

By integrating testing and commissioning considerations into the design process, potential challenges and risks can be identified and addressed proactively, resulting in a smoother project execution.

Factory Acceptance Testing

Before the systems are transported to the project site, factory acceptance testing (FAT) is conducted. FAT verifies that the equipment or systems meet the specified design criteria and perform according to the project requirements. This step helps identify and rectify any manufacturing defects, ensuring that the equipment is fit for installation and further testing.

During FAT, engineers conduct a series of tests to validate the equipment's functionality and performance. These tests can include electrical measurements, operational tests, and simulated scenarios. Any deviations from the expected behaviour are documented, investigated, and rectified to ensure that the equipment meets the project's specifications.

Site Installation and Mechanical Completion

Once the systems are delivered to the project site, the installation phase begins. It involves the physical integration of various components, ensuring proper connections, and adherence to design specifications.

Mechanical completion involves verifying that the installation work is done correctly and that all components are in place. This step sets the foundation for subsequent testing and commissioning activities.

During installation, it is crucial to ensure that the systems are installed according to the design documentation and manufacturer's guidelines. Proper installation is necessary to facilitate accurate testing and commissioning.

Additionally, comprehensive documentation of the installation process and any modifications made during installation should be maintained for future reference.

Site Testing and Commissioning

Pre-commissioning

Pre-commissioning activities include functional checks, verification of interconnections, and initial energisation of systems. It ensures that the installed equipment is ready for testing and commissioning. This step also involves conducting preliminary tests to identify any glaring issues or malfunctions before proceeding further.

Pre-commissioning may involve activities such as insulation resistance tests, continuity checks, and verification of control system functionality. These tests ensure that the systems are correctly connected, and basic functionality is verified before proceeding with more comprehensive testing.

Initial Testing

Initial testing involves a series of tests to assess the functionality, performance, and safety of individual systems or subsystems. It includes checks for electrical, mechanical, and control systems, as well as functional testing to validate their intended operation. Any deviations from the expected behaviour are documented, investigated, and rectified.

During initial testing, engineers focus on verifying that each system operates as intended and meets the specified requirements. Electrical systems may undergo tests such as insulation resistance, continuity, and voltage drop tests. Mechanical systems may be subjected to performance tests and functional checks. Control systems are tested to ensure proper sequencing, interlocks, and communication.

Integrated Systems Testing

Integrated systems testing focuses on testing the interaction and coordination between various interconnected systems. It ensures that the systems work together seamlessly, identify any interface issues, and validate their overall performance.

Integrated systems testing involves comprehensive checks to evaluate the performance of the interconnected systems as a whole. This testing aims to identify any communication issues, integration challenges, or conflicts between different systems. It ensures that all the systems are properly integrated and function collectively to achieve the desired project outcomes.

Performance Testing

Performance testing evaluates the systems under simulated operating conditions to determine their compliance with performance specifications. It includes load testing, stress testing, and endurance testing to assess the systems' capacity, reliability, and response to varying conditions.

Performance testing aims to validate the systems' ability to handle the expected loads and operating conditions. It involves subjecting the systems to different scenarios, such as peak loads or extreme weather conditions, to evaluate their performance. This testing helps identify any weaknesses or limitations in the systems and allows for adjustments or optimisations to enhance their performance.

Safety Testing

Safety testing is an essential aspect of the site testing and commissioning process. It involves testing safety systems, emergency shutdown procedures, and protective measures to ensure the protection of personnel and assets. This step verifies that the systems are designed to mitigate potential hazards and respond appropriately in critical situations.

Safety testing involves checks for compliance with safety standards and regulations. It ensures that safety systems, such as fire detection and suppression, emergency shutdown systems, and protective barriers, function as intended. Safety testing also includes evaluating the systems' response to emergency situations, such as power failure or equipment malfunction.

Final Handover and Documentation

Once all testing and commissioning activities are completed, the project enters the final handover phase. This phase involves the formal acceptance of the systems by the client or end-user.

Comprehensive documentation, including test reports, equipment manuals, as-built drawings, and operating procedures, is prepared and handed over. These documents serve as a valuable reference for future maintenance and operation.

Final handover includes reviewing the test results, ensuring that all non-conformities have been addressed, and obtaining client approval. The documentation prepared during the testing and commissioning process should be organised and provided to the client for their reference.

The documentation should include detailed test reports, equipment specifications, as-built drawings, maintenance instructions, and any other relevant information.

The Role of Testing and Commissioning in Safety and Quality Assurance

Testing and commissioning are critical for ensuring safety and quality assurance in engineering projects. They provide a structured approach to identify and rectify potential hazards, performance issues, and non-compliance with design specifications. By conducting rigorous testing, engineering teams can mitigate risks, prevent accidents, and enhance the reliability of the systems being commissioned.

Safety assurance is a fundamental aspect of testing and commissioning. By thoroughly testing safety systems, emergency shutdown procedures, and protective measures, engineers ensure the protection of personnel and assets.

This includes evaluating the systems' response to critical situations, such as power failure, equipment malfunction, or emergency events. Through safety testing, potential hazards are identified and addressed, minimising risks and ensuring the safety of the project stakeholders.

Quality assurance is another key objective of testing and commissioning. By conducting comprehensive tests, engineers verify that the systems meet the specified performance requirements, comply with regulations and standards, and meet client expectations.

Testing and commissioning help identify any deviations from the desired performance or functionality, allowing for adjustments and improvements before operational deployment. This process enhances the overall quality and reliability of the systems being commissioned.

Testing and commissioning are indispensable components of successful engineering projects. By following the multi-step process outlined in this guide, project managers and decision-makers can ensure that their projects are delivered with safety, quality, and reliability in mind.

Thorough planning, diligent testing, and meticulous documentation are crucial for the smooth execution of testing and commissioning activities. By embracing these processes and their inherent value, engineering professionals can deliver projects that meet or exceed expectations, minimise risks, and ensure the long-term success of their endeavours.

Conclusion

In the intricate landscape of engineering projects, the significance of testing and commissioning cannot be overstated. These processes serve as the linchpin for energy efficiency, ensuring that systems not only meet but exceed performance expectations.

They are the cornerstone of building services, guaranteeing that all components—whether mechanical, electrical, or control systems—work in harmony to deliver optimal performance.

Mechanical engineering plays a pivotal role in this context, providing the expertise needed to scrutinise every nut, bolt, and gear. From factory acceptance testing (FAT) to site installation and mechanical completion, each step is meticulously planned and executed.

This ensures that the systems are not just mechanically sound but also energy-efficient and sustainable, aligning well with the growing emphasis on solar power in engineering solutions.

Safety assurance is another area where testing and commissioning make an indelible impact. By rigorously testing safety systems and emergency protocols, these processes help in averting potential disasters, thereby safeguarding both personnel and assets.

This is particularly crucial in fun projects that involve innovative technologies or unconventional methods, where the risk factors may not be fully understood at the outset.

Moreover, testing and commissioning are integral to the success of building projects, large or small. They provide a structured framework for quality assurance, ensuring that every component, from HVAC systems to solar power installations, meets the set industry standards and client expectations.

In summary, testing and commissioning are more than just obligatory steps in project delivery; they are the bedrock upon which the long-term success of engineering endeavours is built. By adopting a comprehensive approach to these processes, companies like Motion Drives & Controls Ltd continue to set benchmarks in delivering projects that are safe, efficient, and sustainable.
