Friction clutches are mechanical devices designed to connect and disconnect rotating shafts in a controlled manner. They are widely used in automotive, industrial, and agricultural machinery, among others, to control the transfer of power from a source to a driven component. The key to their functionality lies in the frictional force generated between their components, allowing for smooth engagement and disengagement.
What is a Friction Clutch?
At its core, a friction clutch consists of two essential components: a driving member and a driven member. These members can be brought into contact or separated to control the transmission of power. The driving member is typically connected to the power source, such as an engine, while the driven member is connected to the load that receives the power. By controlling the contact between these two members, the clutch governs power transmission.
Types of Friction Clutches
Plate Clutches
Plate clutches are among the most common types of friction clutches. They consist of a set of friction plates alternated with metal plates. When the clutch is engaged, these plates are pressed together, creating friction and transmitting power. Plate clutches can be further categorised into single-plate and multi-plate clutches, depending on the number of friction plates used.
Cone Clutches
Cone clutches operate on the principle of conical surfaces. One of the members has a conical shape, and the other has a matching conical depression. When engaged, these conical surfaces come into contact, creating friction and transmitting power. Cone clutches are often used in applications where precise engagement is required, such as in small vehicles and industrial machinery.
Centrifugal Clutches
Centrifugal clutches are unique in that they engage and disengage automatically based on the rotational speed. They use centrifugal force to control engagement. When the rotational speed of the driving member reaches a certain threshold, the clutch engages, transmitting power. As the speed decreases, the clutch disengages, providing an automatic and load-sensitive operation.
Advantages of Friction Clutches
Friction clutches offer several advantages, making them indispensable in various applications:
- Precise Control: Friction clutches allow for precise control over power transmission, making them ideal for applications where smooth engagement is crucial.
- Wear Compensation: In plate clutches, the friction plates wear over time. However, this wear can be compensated by adjusting the pressure applied to the plates, extending the clutch's lifespan.
- Heat Dissipation: Friction clutches can handle high levels of power transmission and effectively dissipate the heat generated during operation, preventing overheating and damage.
- Automatic Engagement: Centrifugal clutches offer automatic engagement and disengagement based on the rotational speed, reducing the need for manual control.
- Compact Design: Many friction clutches have a compact design, making them suitable for applications with limited space.
Applications of Friction Clutches
Friction clutches find application in a wide range of industries and machinery, including:
- Automotive: Friction clutches are integral to manual transmissions, allowing drivers to shift gears smoothly and control power delivery.
- Industrial Machinery: They are used in industrial equipment such as presses, lathes, and conveyors to control power transfer.
- Agricultural Machinery: Tractors and other farming equipment use friction clutches for engaging and disengaging power to various components.
- Marine: Friction clutches are employed in marine vessels to control propeller engagement and disengagement.
- Construction: Heavy construction equipment relies on friction clutches for tasks such as engaging the power take-off (PTO) to operate auxiliary equipment.
Key Components

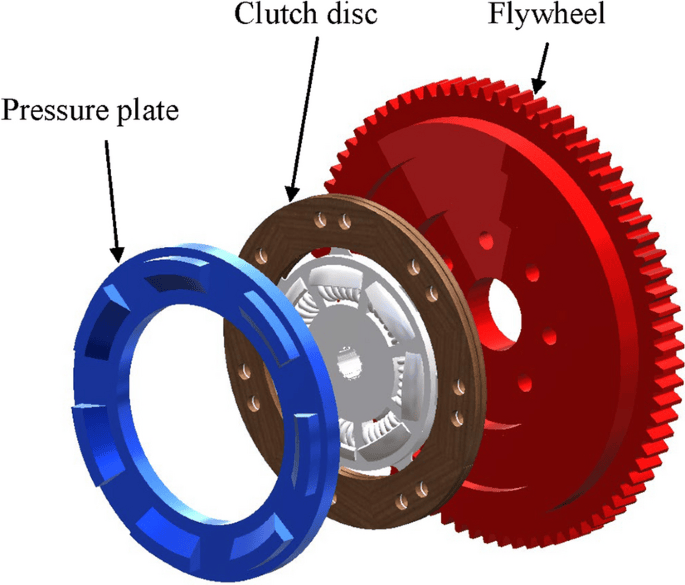

(Source: Effect of Sliding Speed on the Thermal Stresses of Single-Disk Friction Clutches, Journal of Failure Analysis and Prevention)
Understanding the key components of friction clutches is essential for proper maintenance and operation. The primary components include:
Flywheel
The flywheel is a rotating disc connected to the engine's crankshaft. It stores kinetic energy and provides a smooth and consistent rotational motion. In the context of a friction clutch, the flywheel is often connected to the driving member.
Pressure Plate
The pressure plate is an essential part of the clutch assembly. It applies pressure to the friction plates, forcing them into contact with the clutch plate when the clutch is engaged. This pressure plate is typically operated by a diaphragm spring or coil spring mechanism.
Clutch Plate
The clutch plate, also known as the friction disc, is positioned between the flywheel and the pressure plate. It has friction material on both sides and is sandwiched between the two when the clutch is engaged. The friction material provides the necessary grip to transmit power.
Working Principle
The working principle of a friction clutch is straightforward. When the clutch pedal is pressed (in the case of manual clutches) or when the centrifugal force reaches a certain threshold (in the case of centrifugal clutches), the pressure plate moves away from the clutch plate, disengaging the clutch. This separation breaks the contact between the friction surfaces, preventing power transmission. Conversely, when the clutch is engaged, the pressure plate pushes the clutch plate against the flywheel, creating friction and allowing power transfer.
Material Requirements
The choice of materials for the various components of a friction clutch is crucial to ensure its efficiency and durability. Common materials include:
- Friction Material: The friction material on the clutch plate is often made of materials such as organic compounds, carbon-based materials, or ceramics. These materials provide the necessary grip and wear resistance.
- Metal Components: Components like the pressure plate and flywheel are typically made of high-strength metals, such as cast iron or steel, to withstand the forces and heat generated during operation.
Safety Considerations
When working with friction clutches, several safety considerations must be taken into account:
- Heat Dissipation: The heat generated during clutch operation can lead to overheating and damage if not managed properly. Adequate cooling systems should be in place.
- Regular Maintenance: Routine maintenance and inspection are essential to identify wear and tear on friction plates and ensure the clutch functions correctly.
- Proper Engagement: Ensuring that the clutch engages and disengages smoothly is crucial for safe operation, especially in vehicles.
- Wear Monitoring: In plate clutches, monitoring the wear of the friction plates is essential to prevent sudden failures.
Wet vs. Dry Clutches
Friction clutches can be categorised as either wet or dry clutches based on their lubrication system:
Wet Clutches
These clutches are immersed in an oil bath, providing lubrication and cooling. They are commonly used in motorcycles and some automotive applications.
Dry Clutches
Dry clutches operate without immersion in oil. They rely on friction to engage and disengage. Dry clutches are often used in manual transmissions in passenger vehicles.
The choice between wet and dry clutches depends on the specific application's requirements and considerations such as cooling, maintenance, and efficiency.
Industry Applications
Friction clutches have a broad range of applications across various industries:
- Automotive Industry: Manual transmissions in cars and trucks use friction clutches to control power transfer between the engine and the wheels.
- Manufacturing: Industrial machinery, including lathes, presses, and conveyors, rely on friction clutches for precise power control.
- Agriculture: Tractors and farming equipment use friction clutches to engage and disengage power to various components, such as the PTO.
- Marine: Friction clutches are essential in marine vessels for controlling the engagement of propellers.
- Construction: Heavy construction equipment uses friction clutches for tasks like engaging the power take-off for auxiliary equipment.
Conclusion
Friction clutches are versatile and vital components in a wide array of machinery and industries. Their ability to provide precise control over power transmission, adaptability to various applications, and efficiency make them indispensable. Understanding their types, advantages, key components, and proper maintenance is crucial for ensuring their reliable and safe operation.
FAQs
A friction clutch is a mechanical device used to connect and disconnect rotating shafts in a controlled manner. It relies on frictional force to engage and disengage, allowing for precise power transmission. Friction clutches are commonly found in manual transmissions, where they facilitate gear changes by controlling the connection between the engine and the wheels.
Friction clutches offer several advantages, making them indispensable in various applications. They provide precise control over power transmission, ensuring smooth and efficient operation. Additionally, they are known for their ability to compensate for wear, prolonging their lifespan and reducing maintenance costs.
The key components of a friction clutch include the flywheel, pressure plate, and clutch plate. The flywheel, connected to the engine's crankshaft, stores kinetic energy and provides rotational stability. The pressure plate applies force to the clutch plate, enabling engagement and disengagement by controlling the friction between them. Together, these components form the core of a friction clutch assembly.
Safety is paramount when dealing with friction clutches. Proper heat dissipation measures must be in place to prevent overheating during operation, which can lead to clutch failure and potential accidents. Regular maintenance, including inspections to monitor wear and tear on the friction plates, is crucial for ensuring the clutch functions reliably. Furthermore, ensuring that the clutch engages and disengages smoothly is essential for safe operation, particularly in vehicles.
Wet and dry clutches serve similar functions but differ in their lubrication systems. Wet clutches are immersed in an oil bath, providing lubrication and cooling. They are commonly used in motorcycles and some automotive applications where efficient cooling is essential. In contrast, dry clutches operate without oil immersion and rely solely on friction for engagement and disengagement.
